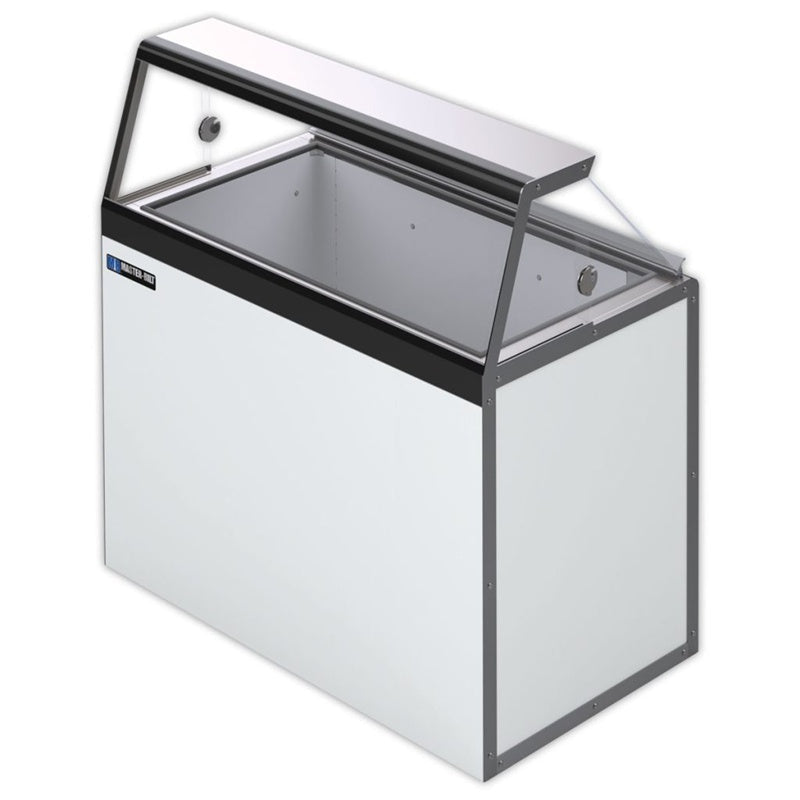

MASTER-BILT DD-46 Ice Cream Dipping Cabinet
MASTER-BILT DD-46 Ice Cream Dipping Cabinet
Couldn't load pickup availability
Master Bilt Ice Cream Freezer DD 46 Overview
The Master-Bilt DD-46 Ice Cream Dipping Cabinet is a durable, high-visibility display cabinet designed to showcase your ice cream beautifully while maintaining perfect serving conditions.
With capacity for 8 display cans and 4 storage cans, it’s ideal for mid-size parlors, cafes, and dessert counters.
The full glass top, tempered glass ends, and bright LED lighting make every flavor irresistible to customers, while the cold wall evaporator system delivers consistent, even cooling to preserve smooth, scoopable texture.
Built for daily commercial use, it features a stainless steel top, ergonomic low back design, and drain with hose connector for easy cleaning.
Powered by eco-friendly R290 refrigerant and backed by a 2-year parts and labor warranty plus 3 years on the compressor, the DD-46 is a reliable, energy-efficient choice for professional ice cream service.
Master Bilt Dipping Cabinet DD-46 Fast Facts
- Total capacity of 12 (3 gallon) ice cream tubs
- Temperature range: 5F to -5F
- R-factor (insulation efficiency rating): 19.40
- Brilliant Visibility: Full glass top and LED lighting showcase every flavor in vibrant detail to attract customers
- Extra Storage: Keeps backup tubs cold and easily accessible during peak hours
- 3" thick walls and 2-1/2" floor with foamed-in-place “zero ODP” urethane insulation
- cULus and ANSI/NSF 7 certification
- Warranty: 2 year parts and labor | 5 years compressor
Master Bilt Ice Cream Dipping Cabinet DD 46 Specifications
| Height | 50" |
| Widht | 48 1/4" |
| Depth | 27 1/2" |
| Shipping Weight | 407 lb |
| Display Capacity | 8 (3 gallon) cans |
| Storage Capacity | 4 (3 gallon) cans |
| Power Supply | 115V / 1 ph / 60 Hz |
| Total Amp Draw | 5.9 |
| NEMA Plug Configuration | 5-15P |
| Refrigerant | R290 |
| R-factor | 19.40 |
| Warranty | 2 year parts and labor | 5 years compressor |
Master Bilt DD 46 Specification Sheet and User Manual
