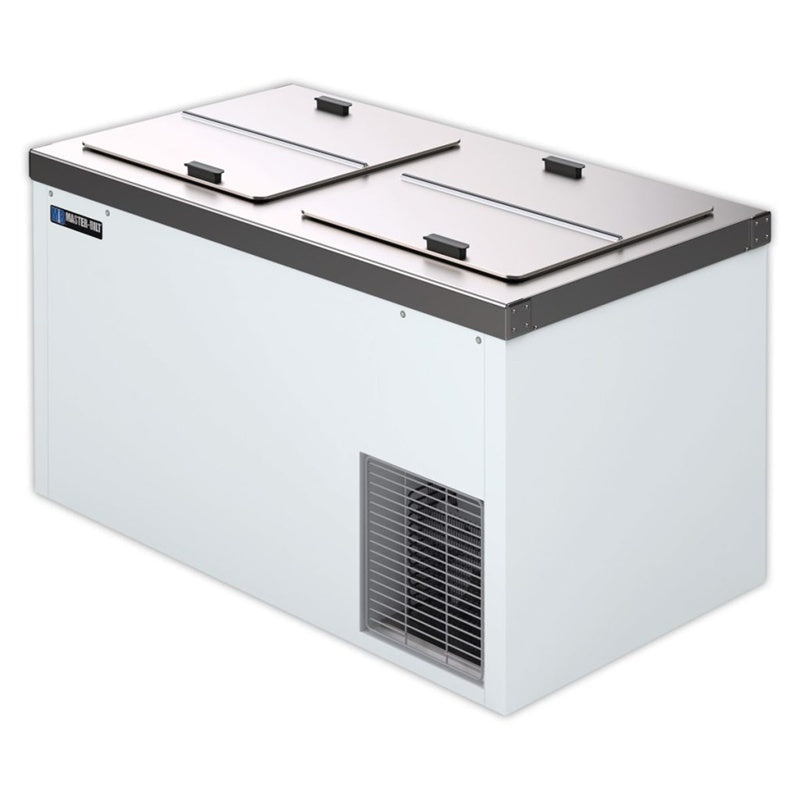

MASTER-BILT DC-8D Ice Cream Dipping Cabinet
MASTER-BILT DC-8D Ice Cream Dipping Cabinet
Couldn't load pickup availability
Master Bilt Ice Cream Freezer DC 8D Overview
The Master-Bilt DC-8D Ice Cream Dipping Cabinet delivers the perfect balance of durability, efficiency, and performance - ideal for busy ice cream shops and parlors.
Built with a seamless stainless steel top and galvanized steel interior, this unit resists corrosion and stands up to daily commercial use. The cold wall evaporator system ensures an even, consistent temperature without air flow that can dry out or harden ice cream, preserving a smooth, scoop-ready texture.
With capacity for 11 display cans and 8 storage cans it keeps operations running smoothly during peak hours.
Features like a floor drain with garden hose fitting simplify cleaning, while anti-condensate heaters and foamed-in-place “zero ODP” insulation enhance temperature retention and performance.
Backed by a 2-year parts and labor warranty and 3-year compressor coverage, the DC-8D is a dependable, energy-efficient solution for professional frozen dessert service.
Master Bilt Dipping Cabinet DC-8D Fast Facts
- Total capacity of 19 (3 gallon) ice cream tubs
- Temperature range: 10F to -10F
- R-factor (insulation efficiency rating): 19.40
- Seamless stainless steel top and galvanized steel interior resist corrosion and withstand daily commercial use
- Lower storage compartment keeps additional tubs cold and within easy reach during busy hours
- 2-1/4" foamed-in-place “zero ODP” urethane insulation
- cULus and NSF certification
- Warranty: 2 year parts and labor | 5 years compressor
Master Bilt Ice Cream Dipping Cabinet DC 8D Specifications
| Height | 34 1/8" |
| Widht | 54" |
| Depth | 30 1/8" |
| Shipping Weight | 365 lb |
| Display Capacity | 11 (3 gallon) cans |
| Storage Capacity | 8 (3 gallon) cans |
| Power Supply | 115V / 1 ph / 60 Hz |
| Total Amp Draw | 3.6 |
| NEMA Plug Configuration | 5-15P |
| Refrigerant | R290 |
| R-factor | 19.40 |
| Warranty | 2 year parts and labor | 5 years compressor |
Master Bilt DC 8D Specification Sheet and User Manual
