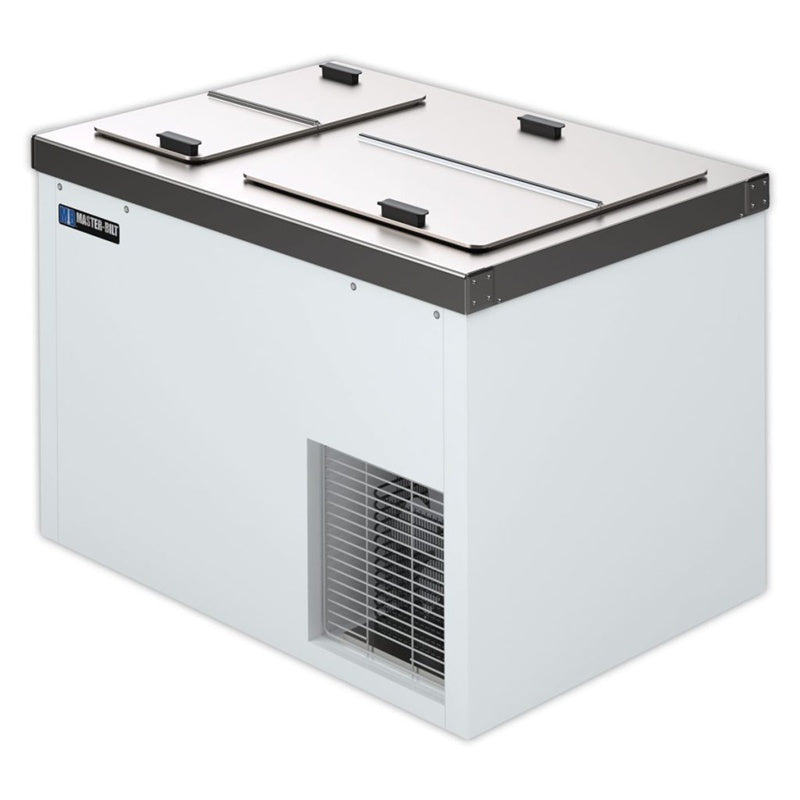

MASTER-BILT DC-6D Ice Cream Dipping Cabinet
MASTER-BILT DC-6D Ice Cream Dipping Cabinet
Couldn't load pickup availability
Master Bilt Ice Cream Freezer DC 6D Overview
The Master-Bilt DC-6D Ice Cream Dipping Cabinet is a dependable, high-performance solution designed to keep your ice cream at the perfect serving temperature.
Its cold wall evaporator system provides even cooling throughout the cabinet—without air circulation that can dry out or harden your product—ensuring a consistently creamy texture.
Built with a durable stainless steel top and galvanized steel interior, it’s engineered for long-lasting use in busy commercial settings. The convenient floor drain and garden hose fitting make cleaning simple, while anti-condensate heaters prevent moisture buildup even in warm environments.
With space for 8 display cans and 5 storage cans, plus energy-efficient foamed-in-place insulation, the DC-6D offers exceptional reliability, easy maintenance, and professional presentation—perfect for ice cream parlors, dessert shops, and foodservice operations.
Master Bilt Dipping Cabinet DC-6D Fast Facts
- Total capacity of 13 (3 gallon) ice cream tubs
- Temperature range: 10F to -10F
- R-factor (insulation efficiency rating): 19.40
- Seamless stainless steel top and galvanized steel interior resist corrosion and withstand daily commercial use
- Lower storage compartment keeps additional tubs cold and within easy reach during busy hours
- 2-1/4" foamed-in-place “zero ODP” urethane insulation
- cULus and NSF certification
- Warranty: 2 year parts and labor | 5 years compressor
Master Bilt Ice Cream Dipping Cabinet DC 6D Specifications
| Height | 34 1/8" |
| Widht | 43" |
| Depth | 30 1/8" |
| Shipping Weight | 275 lb |
| Display Capacity | 8 (3 gallon) cans |
| Storage Capacity | 5 (3 gallon) cans |
| Power Supply | 115V / 1 ph / 60 Hz |
| Total Amp Draw | 3.2 |
| NEMA Plug Configuration | 5-15P |
| Refrigerant | R290 |
| R-factor | 19.40 |
| Warranty | 2 year parts and labor | 5 years compressor |
Master Bilt DC 6D Specification Sheet and User Manual
