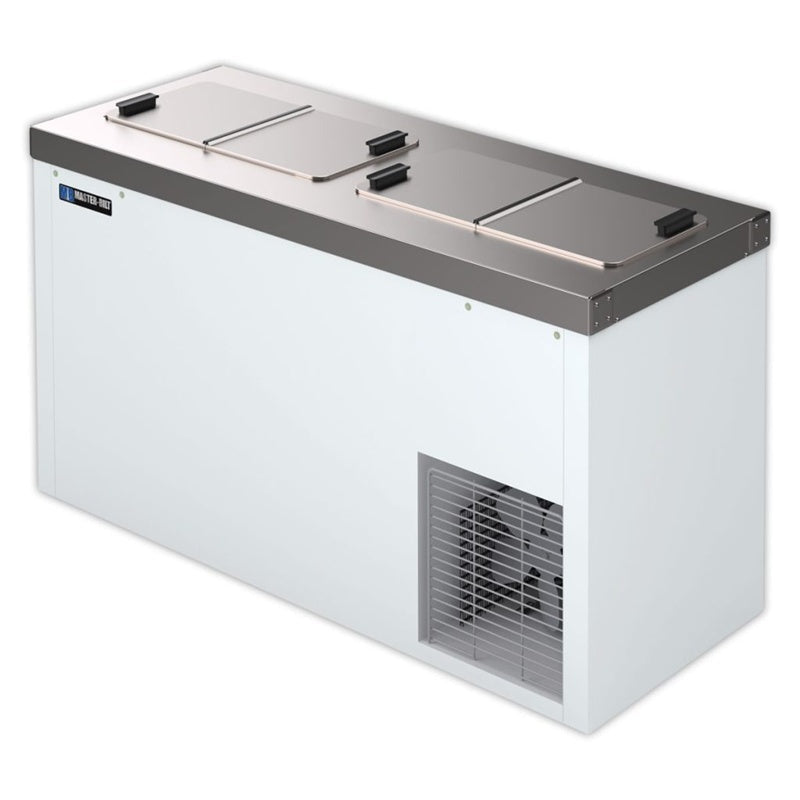

MASTER-BILT DC-4S Ice Cream Dipping Cabinet
MASTER-BILT DC-4S Ice Cream Dipping Cabinet
Couldn't load pickup availability
Master Bilt Ice Cream Freezer DC 4S Overview
The Master-Bilt DC-4S Ice Cream Dipping Cabinet combines sleek design with reliable performance—perfect for smaller parlors, cafes, and dessert shops looking to showcase their ice cream in style.
With capacity for 6 display cans and 4 storage cans, it offers the ideal balance of display and storage in a compact footprint.
The cold wall evaporator system maintains an even, consistent temperature without air circulation that can compromise texture, keeping ice cream smooth and scoop-ready.
Built for durability, it features a seamless stainless steel top, galvanized steel interior, and 2-1/4" foamed-in-place “zero ODP” insulation for exceptional cold retention.
Easy-clean floor drain, anti-condensate heaters, and factory-tested R290 refrigeration system make the DC-4S a dependable, energy-efficient choice for any professional ice cream operation.
Master Bilt Dipping Cabinet DC-4S Fast Facts
- Total capacity of 10 (3 gallon) ice cream tubs
- Temperature range: 10F to -10F
- R-factor (insulation efficiency rating): 19.40
- Seamless stainless steel top and galvanized steel interior resist corrosion and withstand daily commercial use
- Lower storage compartment keeps additional tubs cold and within easy reach during busy hours
- 2-1/4" foamed-in-place “zero ODP” urethane insulation
- cULus and NSF certification
- Warranty: 2 year parts and labor | 5 years compressor
Master Bilt Ice Cream Dipping Cabinet DC 4S Specifications
| Height | 34 1/8" |
| Widht | 54" |
| Depth | 21 1/8" |
| Shipping Weight | 280 lb |
| Display Capacity | 6 (3 gallon) cans |
| Storage Capacity | 4 (3 gallon) cans |
| Power Supply | 115V / 1 ph / 60 Hz |
| Total Amp Draw | 3.2 |
| NEMA Plug Configuration | 5-15P |
| Refrigerant | R290 |
| R-factor | 19.40 |
| Warranty | 2 year parts and labor | 5 years compressor |
Master Bilt DC 4S Specification Sheet and User Manual
