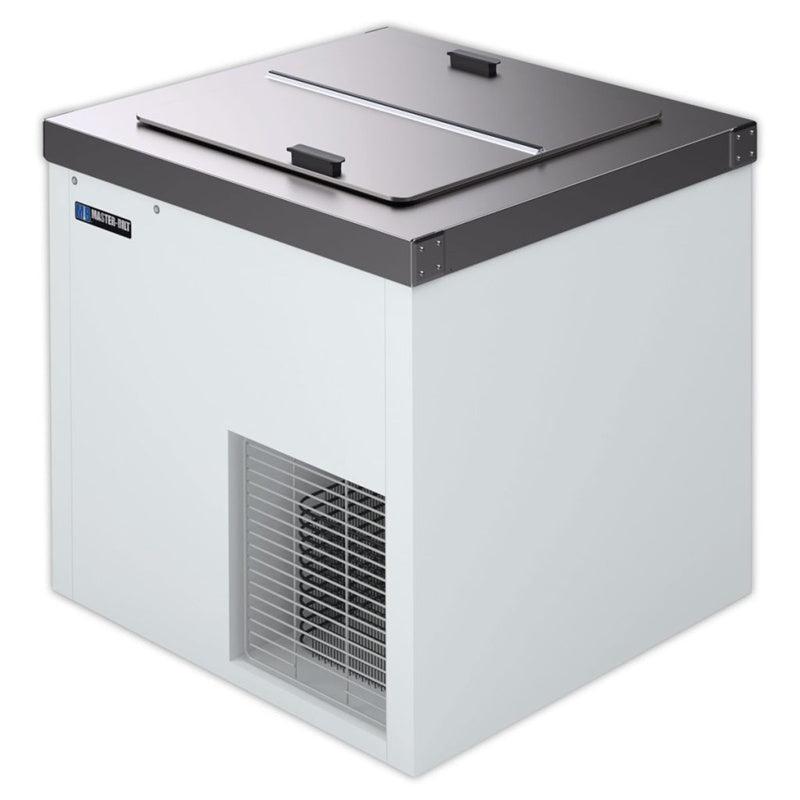

MASTER-BILT DC-4D Ice Cream Dipping Cabinet
MASTER-BILT DC-4D Ice Cream Dipping Cabinet
Couldn't load pickup availability
Master Bilt Ice Cream Freezer DC 4D Overview
The Master-Bilt DC-4D Ice Cream Dipping Cabinet is a compact, high-performance solution designed to keep your ice cream perfectly chilled.
With space for 5 display cans and 2 storage cans, it’s ideal for small to mid-size ice cream shops, cafes, and concession stands.
The cold wall evaporator system ensures consistent, even cooling without air flow that can affect product quality—preserving a creamy, scoop-ready texture.
Built with a seamless stainless steel top, galvanized steel interior, and 2-1/4" foamed-in-place “zero ODP” insulation, this cabinet is made for long-lasting durability and superior energy efficiency.
Features like a convenient floor drain, anti-condensate heaters, and eco-friendly R290 refrigeration system make the DC-4D a reliable, easy-to-maintain choice for professional frozen dessert service.
Master Bilt Dipping Cabinet DC-4D Fast Facts
- Total capacity of 7 (3 gallon) ice cream tubs
- Temperature range: 10F to -10F
- R-factor (insulation efficiency rating): 19.40
- Seamless stainless steel top and galvanized steel interior resist corrosion and withstand daily commercial use
- Lower storage compartment keeps additional tubs cold and within easy reach during busy hours
- 2-1/4" foamed-in-place “zero ODP” urethane insulation
- cULus and NSF certification
- Warranty: 2 year parts and labor | 5 years compressor
Master Bilt Ice Cream Dipping Cabinet DC 4D Specifications
| Height | 34 1/8" |
| Widht | 30 5/8" |
| Depth | 30 1/8" |
| Shipping Weight | 220 lb |
| Display Capacity | 5 (3 gallon) cans |
| Storage Capacity | 2 (3 gallon) cans |
| Power Supply | 115V / 1 ph / 60 Hz |
| Total Amp Draw | 2.7 |
| NEMA Plug Configuration | 5-15P |
| Refrigerant | R290 |
| R-factor | 19.40 |
| Warranty | 2 year parts and labor | 5 years compressor |
Master Bilt DC 4D Specification Sheet and User Manual
